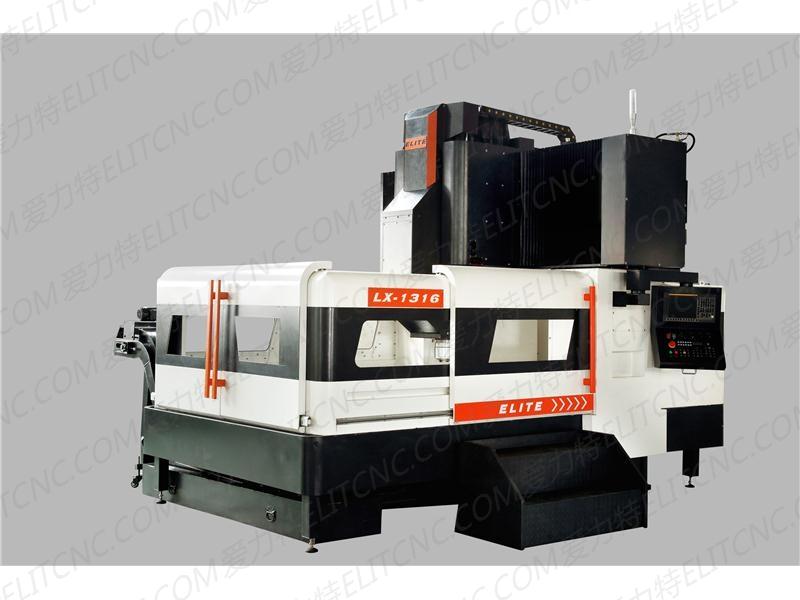

LX-1613龙门加工中心


  • 产品名称:LX龙门加工中心
  • 产品型号:LX1613
  • 市场价格: 元/台 批发价格: 元/台
  • 出品单位:爱力特精机专业数控机床制造商

  • ※※产品介绍※※

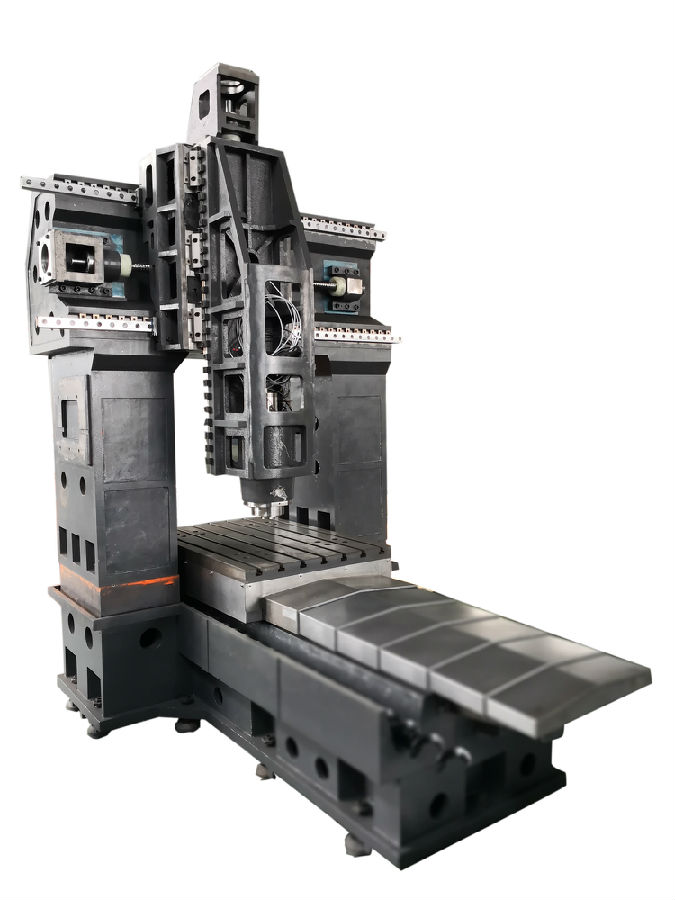

    优异主轴能力

    对称中心设计,实现最小热变位,高扭矩的长期稳定加工精度.



    型号  Type

         LX-1613

    工作台尺寸Table size

    1700×1300

    T型槽尺寸(宽×数量×节距)mm

    T shaped  groove(W×Qty×Pitch)mm

    22×7×190

    工作台最大载重 kg

    Table max  loading (Kg)

    3000

    行程  Travel


    X/Y/Z 轴行程

    X/Y/Z spindle  travel

    1600/1300/650

    主轴鼻端至工作台面距离mm

    Spindle nose  to work table distance

    200-850

    过龙门宽度

    Over widht of gantry

    1500

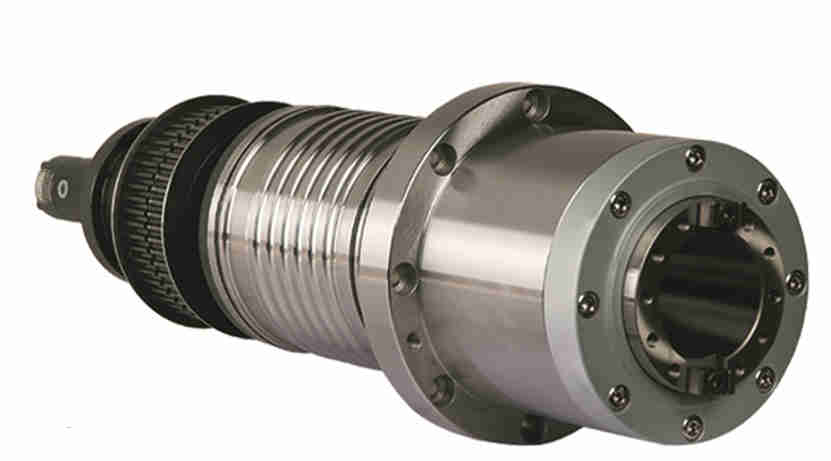

    主轴  SPINDLE


    主轴锥度 spinedle taper

    BT50

    主轴转速 spindle speed

    8000/

    6000  rpm

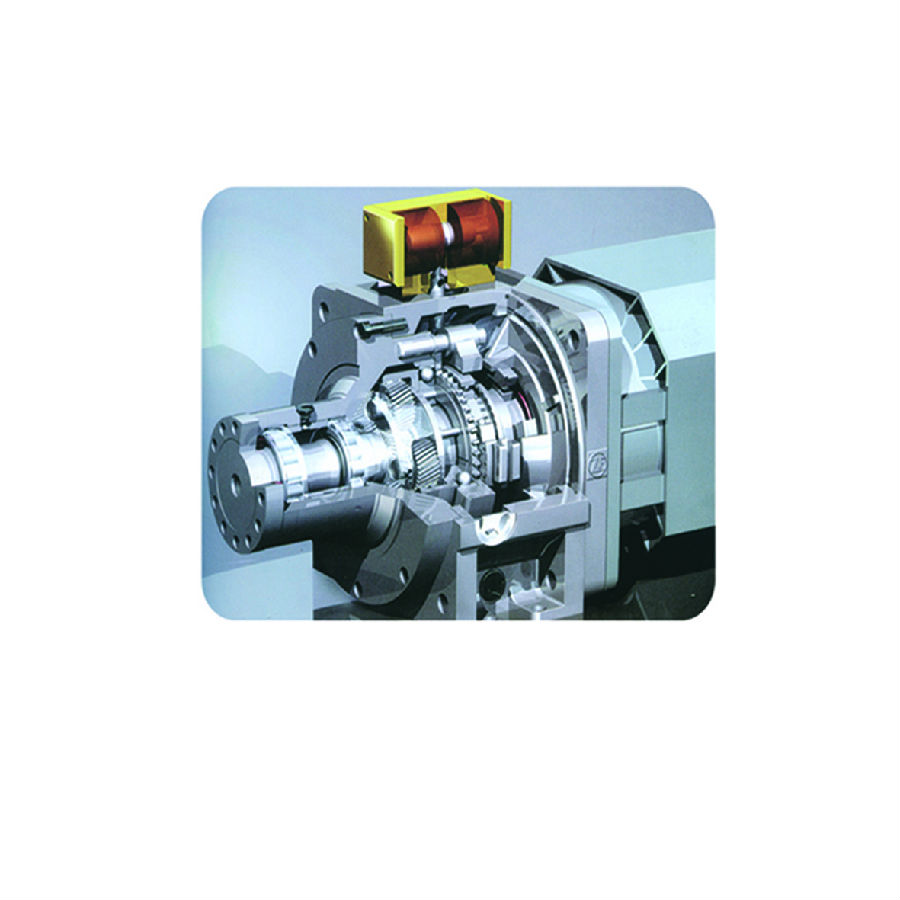

    传动方式 Way of drive

    Belt/Gear

    主轴马达 Spindle motor

    BIP30

    进给  Feeding


    X/Y/Z轴快速进给速率 M/MIN

    X/Y/Z axis  fast feeding rate(m/min)

    20/20/20

    X/Y/Z轴滚珠螺杆(直径×螺距)

    X/Y/Z axis  ball screw

    (Dia×screw pitch)

    5010(XY)

    5010(Z)

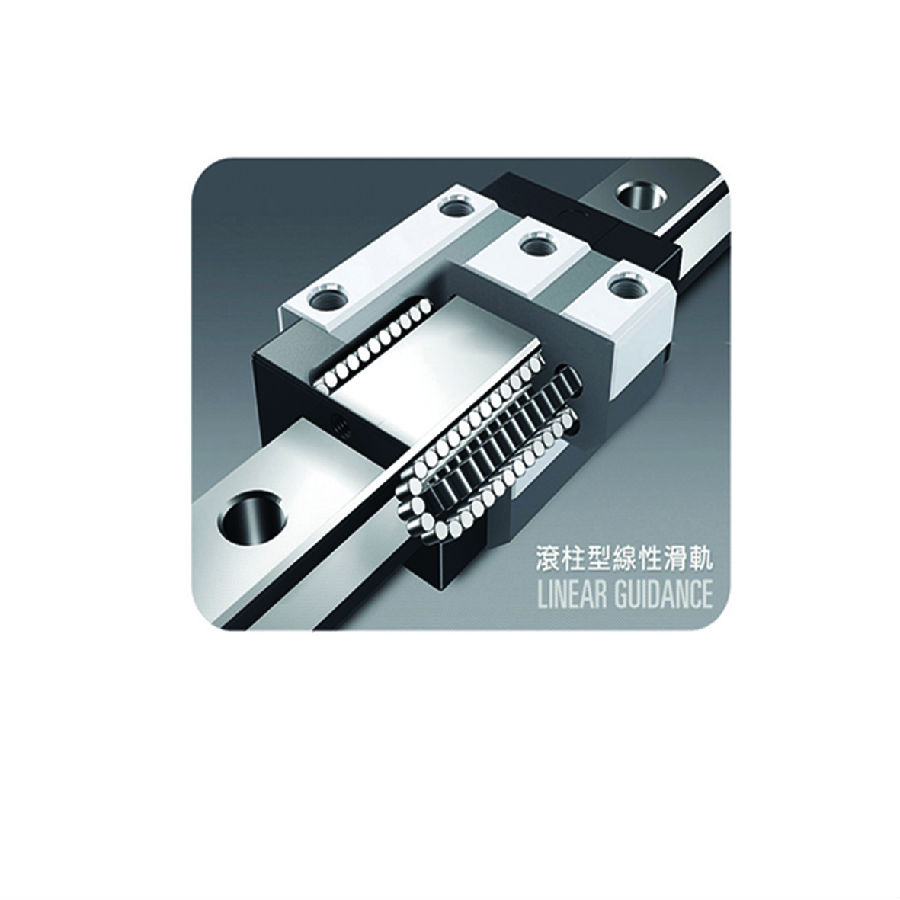

    X/Y/Z轴线轨滚柱

    X/Y/Z axis  roller track

    45/55/55

    XYZ轴伺服电机传动方式及传动比

    XYZ axis servo  motor driving mode and transmission ratio

    1:1(X)

    X/Y/Z轴切削进给速率m/min

    X/Y/Z axis  cutting feed rate(m/min)

    10

    定位精度(全程VDI3441)mm

    Position accuracy

    (full  VDI3441)mm

    0.008

    重复定位精度(全程VDI3441) mm

    Repeated  positional accuracy

    (full  VDI3441)mm

    0.006

    刀库(选配)Tool  magazine(optional)


    刀库形式Tool magazine form

    Disc

    刀库容量&刀把形式

    Tool mag  capacity & tool handle

    BT50/24pcs

    最大刀具直径(满刀)mm

    Max tool  diameter(full tool)mm

    110

    最大刀具直径(临空刀)mm

    Max tool  diameter(aerial tool)mm

    200

    最大刀具长度mm

    Max length of  tool(mm)

    300

    最大刀具重量kg

    Max weight of  tool(kg)

    16

    马达

    Motor


    X/Y/Z马达

    X/Y/Z axis  motor

    BISC40/

    BISC40/

    BIS40

    电源需求规格KVA

    Power  requirementKVA

    35

    切削液高压泵浦W

    High pressure  pumping of cutting fluid

    450

    润滑油泵浦W

    Lubrication  oil pumping

    20

    所需气压kgf/cm2

    Air pressure  (kgf/cm2)

    6

    机械尺寸

    Dimension of  machine


    机械外形尺寸(长×宽×高)mm

    Dimension(L×W×H)mm

    4300×2800×3700

    机械重量kg

    Weight(kg)

    14500
